fasnseal double-wall ProTech FasNSeal W2 Double-Wall |
| CSI CONSERVATION SYSTEMS INC 407.351.9121 CONTACT HOME |
| ProTech FasNSeal W2 stainless steel gas vent provides a gas- and water-tight venting system that safely guides the poisonous and highly corrosive combustion byproducts of high-efficiency heating equipment to the outside of the building. Its advanced, easily assembled, double-walled design offers the most professional way to install a pressurized venting system for condensing or partially-condensing gas-fired heating appliances (listed as Category II, III or IV) or for non-condensing naturally drafted or fan-assisted heating appliances (listed as Category I). |
|
|

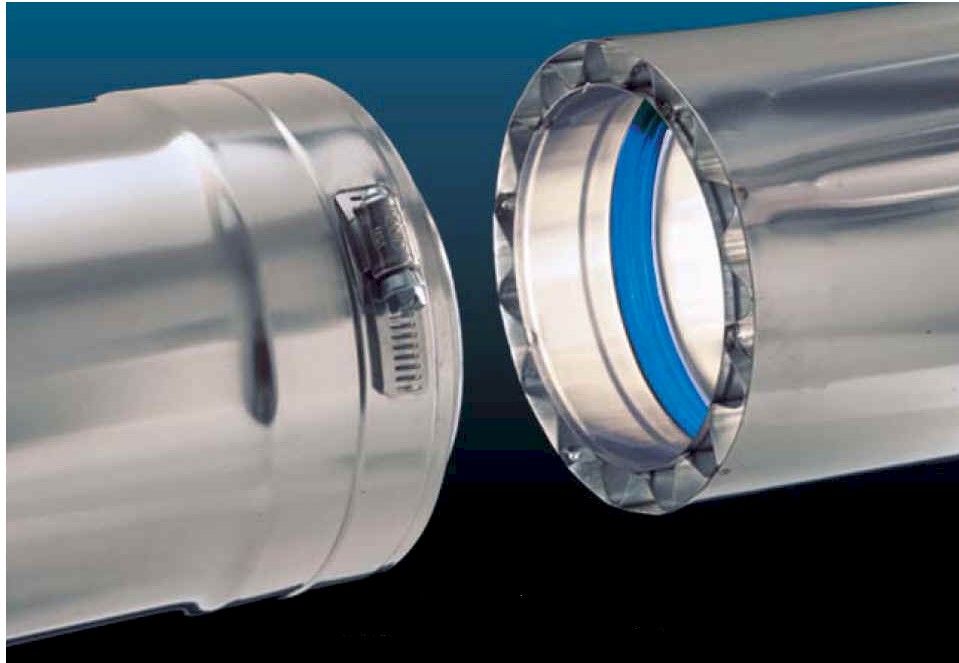

| Components are easily connected by firmly pushing them together and tightening the built-in mechanical locking band with an ordinary nut driver. As shown above, the gasket is also built in and there is no need for additional sealant. Since no time is needed for clean up or for curing, the heating appliance may be fired up immediately upon completion of the venting assembly. |
| Constructed of stainless steel (AL29-4C for flue gas conduit and Type 304 or Type 430 for the jacket), all FasNSeal components are extremely resistant to chloride ion pitting, crevice corrosion and stress corrosion cracking, and to general corrosion in moderately oxidizing and moderately reducing (redox) environments. Designed for systems with a maximum flue gas temperature of 550°F and a maximum positive pressure of 6" w.c. |
| Individual fixed and adjustable lengths, as well as elbows, tees, thimbles, flashings, storm collars, rain caps and other fittings are available with inside diameters from 3" to 16". (See PDF catalog link below.) |
| Tested and listed by Underwriters Laboratories, Inc. to UL 1738 and ULC-S636-95. |
| Limited fifteen (15) year manufacturer's warranty. For complete warranty information, click here. |
Catalog
Adapter
Catalog
Installation
Instructions |
| Central Florida Representative:
|
Manufacturer:
|
| Conservation Systems, Inc. 5850 Lakehurst Drive, Suite 120 Orlando, FL 32819-8386 407.351.9121 Phone 407.352.6391 Fax www.csiworldwide.com |
ProTech Systems,
Inc. 400 S. Pearl Street Albany, NY 12202-1912 1-800-766-3473 Toll Free (518) 463-5271 Fax www.protechinfo.com |
| Specifications subject to change without notice. | |
