EXHAUSTO MCAS Combustion Air Supply
CSI CONSERVATION SYSTEMS INC 407.351.9121    CONTACT    HOME

The UL-Listed EXHAUSTO MCAS (Modulating Combustion Air Supply) is designed to control the air pressure in mechanical rooms containing gas-fired heating appliances such as boilers and water heaters, or in commercial laundry drying facilities.

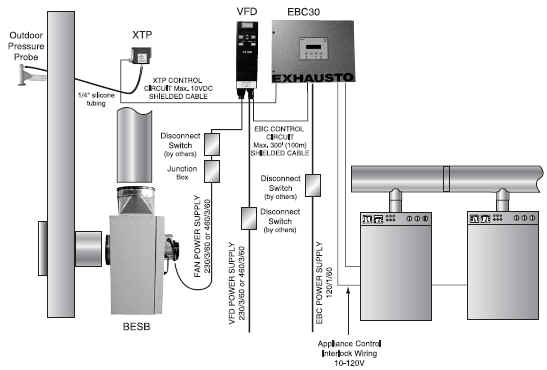

EBC 30 Pressure Control Gas-Fired Heating Appliance Gas-Fired Heating Appliance VFD Variable Frequency Drive XTP Pressure Sensor BESB Box Ventilator Outdoor Air Pressure Sensor Fresh Air IntakeEXHAUSTO MCAS Modulating Combustion Air System
Providing precisely measured amounts of combustion air to gas-fired equipment is very important: too little can cause sooting, carbon monoxide buildup, backfire, and damage to equipment; too much air can lead to unnecessarily high fuel bills. Clothes driers, especially, require enough air to dry linens and clothes quickly and efficiently.
Click on an individual component for more information. Supplied as a complete package with fan, controls, pressure sensor, and outdoor pressure probe.

MCAS Advantages & Features

  • Maintains constant pressure in mechanical room thus eliminating the need for gravity louvers.

  • Variable speed TEFC motor with permanently lubricated and sealed bearings designed for long service life.

  • Integrated safety system can be interlocked with an unlimited number of appliances.

  • Allows the use of smaller, less obtrusive mechanical louvers.

  • Hinged door allows unrestricted access to fan housing, outlet and impeller and is secured by Allen screws to prevent unauthorized access.

  • Three sizes available.

  • Two year manufacturer's warranty; fan housing is covered by a 10-year corrosion perforation warranty.
